Range of product

Easy9

Product or component type

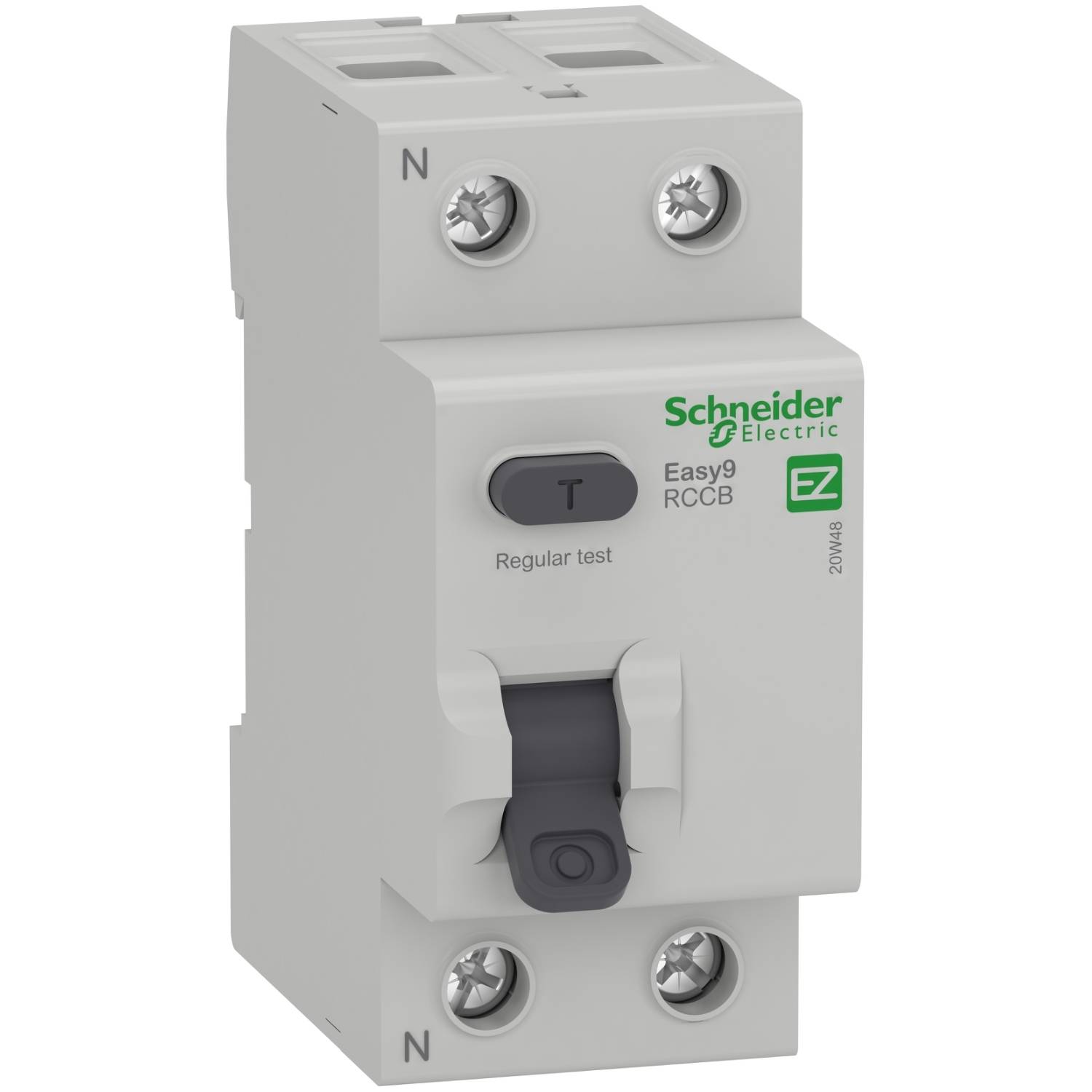

Residual current circuit breaker (RCCB)

Device short name

Easy9 RCCB

Poles

2P

Neutral position

Left

[In] rated current

100 A

Network type

AC

Earth-leakage sensitivity

30 mA

earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A

Rated breaking and making capacity

500 A

Rated conditional short-circuit current

Easy9 MCB: 3000 A 100 A

device location in system

Outgoer

Network frequency

50 Hz

[Ue] rated operational voltage

230 V AC 50 Hz

Residual current tripping technology

Voltage independent

[Ui] rated insulation voltage

440 V AC

[Uimp] rated impulse withstand voltage

4 kV

Contact position indicator

Yes

Control type

Toggle

Mounting mode

Clip-on

mounting support

DIN rail

Comb busbar and distribution block compatibility

Top: YES

Connection pitch

18 mm between phases

9 mm pitches

4

height

82 mm

Width

36 mm

Depth

72 mm

Net weight

200 g

Colour

Grey (RAL 7035)

Mechanical durability

5000 cycles

Electrical durability

AC: 2000 cycles 230 V AC 50 Hz

Connections - terminals

Tunnel type terminal (top or bottom) 1…35 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible

Wire stripping length

16 mm for top or bottom connection

Tightening torque

3.5 N.m top or bottom

standards

IEC 61008-1 BS EN 61008-1

product certifications

CE UKCA

IP degree of protection

IP20

Pollution degree

2 conforming to IEC 61008-1

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-5…60 °C

Ambient air temperature for storage

-40…85 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.000 cm

Package 1 Width

4.000 cm

Package 1 Length

9.000 cm

Package 1 Weight

219.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

6

Package 2 Height

9.500 cm

Package 2 Width

10.000 cm

Package 2 Length

25.500 cm

Package 2 Weight

1.402 kg

Unit Type of Package 3

S03

Number of Units in Package 3

54

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

13.318 kg

Warranty

18 months
