EZ9R33291

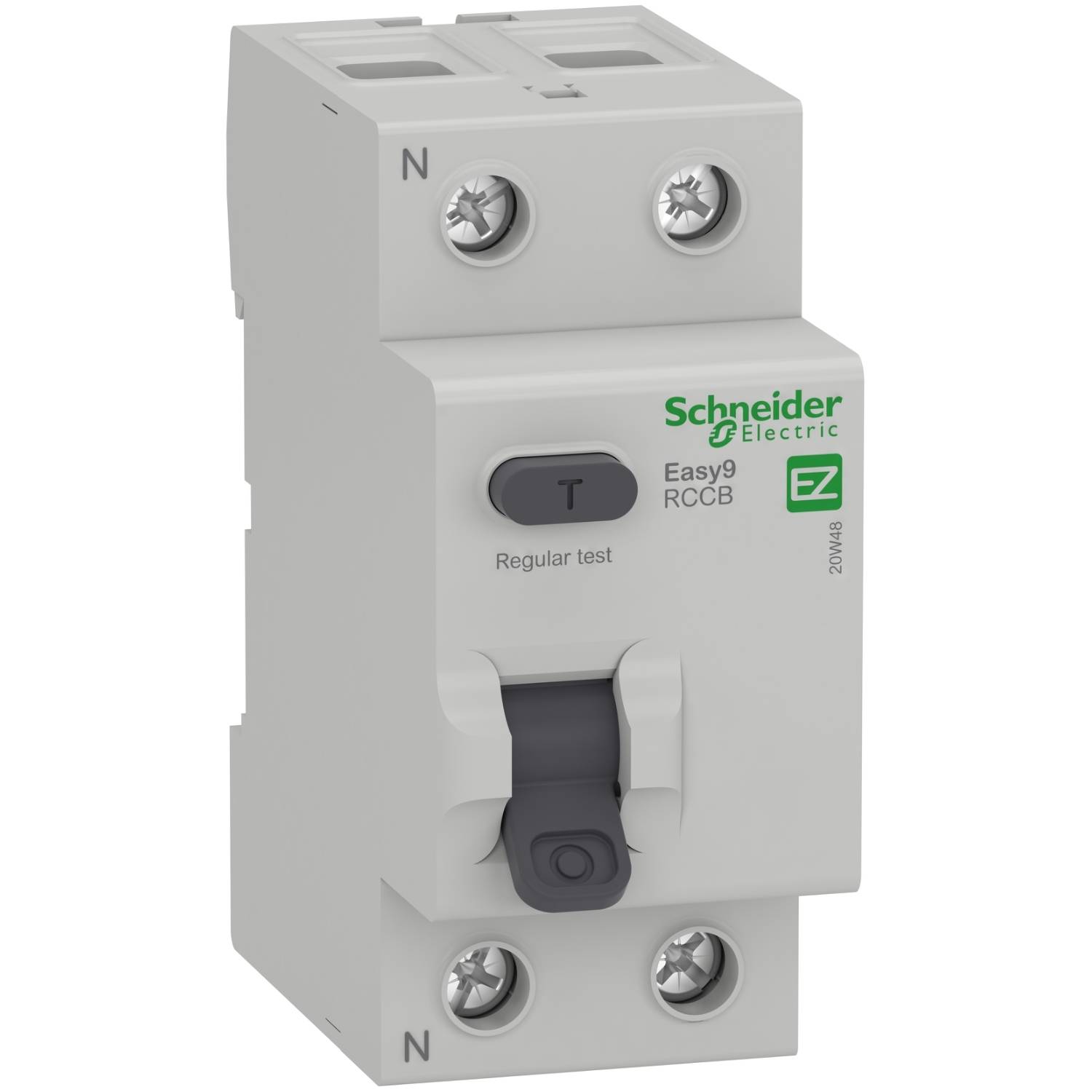

EASY9 RCCB 2P 100A 30MA AC
Trade Price
POA
Per
1
Unit
EA
Pack Quantity
1
Information
This Easy9 product is a residual current circuit breaker (RCCB). It is a 2P circuit breaker with 100A In rated current, 30mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It also has protection against fire hazards due to persistent earth fault current. This product has a positive contact indications with fault tripping indication on the front panel by the position of the handle (0-I engraved). This is dedicated for residential and small commercial buildings market segment. It is compliant with IEC 61008-1 and BS EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 500A. The (Inc/IΔc) conditional rated short circuit current is 3000A. It has an electrical endurance going up to 2000 cycles and a mechanical endurance going up to 5000 cycles. The Ue operational voltage is 127VAC or 230VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 82mm x (D) 72mm. The weight is 195g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -40°C to 85°C.
Technical Specifications
Range of product
Easy9
Product or component type
Residual current circuit breaker (RCCB)
Device short name
Easy9 RCCB
Poles
2P
Neutral position
Left
[In] rated current
100 A
Network type
AC
Earth-leakage sensitivity
30 mA
earth-leakage protection time delay
Instantaneous
Earth-leakage protection class
Type AC
Rated breaking and making capacity
500 A
Rated conditional short-circuit current
Easy9 MCB: 3000 A 100 A
device location in system
Outgoer
Network frequency
50/60 Hz
[Ue] rated operational voltage
127/230 V AC 50/60 Hz
Residual current tripping technology
Voltage independent
[Ui] rated insulation voltage
440 V AC
[Uimp] rated impulse withstand voltage
4 kV
Contact position indicator
Yes
Control type
Toggle
Mounting mode
Clip-on
mounting support
DIN rail
Comb busbar and distribution block compatibility
Top: YES
Connection pitch
18 mm between phases
9 mm pitches
4
height
82 mm
Width
36 mm
Depth
72 mm
Net weight
195 g
Colour
Grey (RAL 7035)
Mechanical durability
5000 cycles
Electrical durability
AC: 2000 cycles 230 V AC 50/60 Hz
Connections - terminals
Tunnel type terminal (top or bottom) 1…35 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible
Tightening torque
3.5 N.m top or bottom
standards
IEC 61008-1 BS EN 61008-1
product certifications
ISI CE
IP degree of protection
IP20
Pollution degree
2 conforming to BS EN 61008-1
Tropicalisation
2
Relative humidity
95 % at 55 °C
Ambient air temperature for operation
-5…60 °C
Ambient air temperature for storage
-40…85 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
8 cm
Package 1 Width
4 cm
Package 1 Length
9 cm
Package 1 Weight
219 g
Unit Type of Package 2
BB1
Number of Units in Package 2
6
Package 2 Height
9.2 cm
Package 2 Width
9.7 cm
Package 2 Length
25.5 cm
Package 2 Weight
1.314 kg
Unit Type of Package 3
S03
Number of Units in Package 3
54
Package 3 Height
30 cm
Package 3 Width
30 cm
Package 3 Length
40 cm
Package 3 Weight
15.768 kg
Warranty
18 months
