9001SKR9R

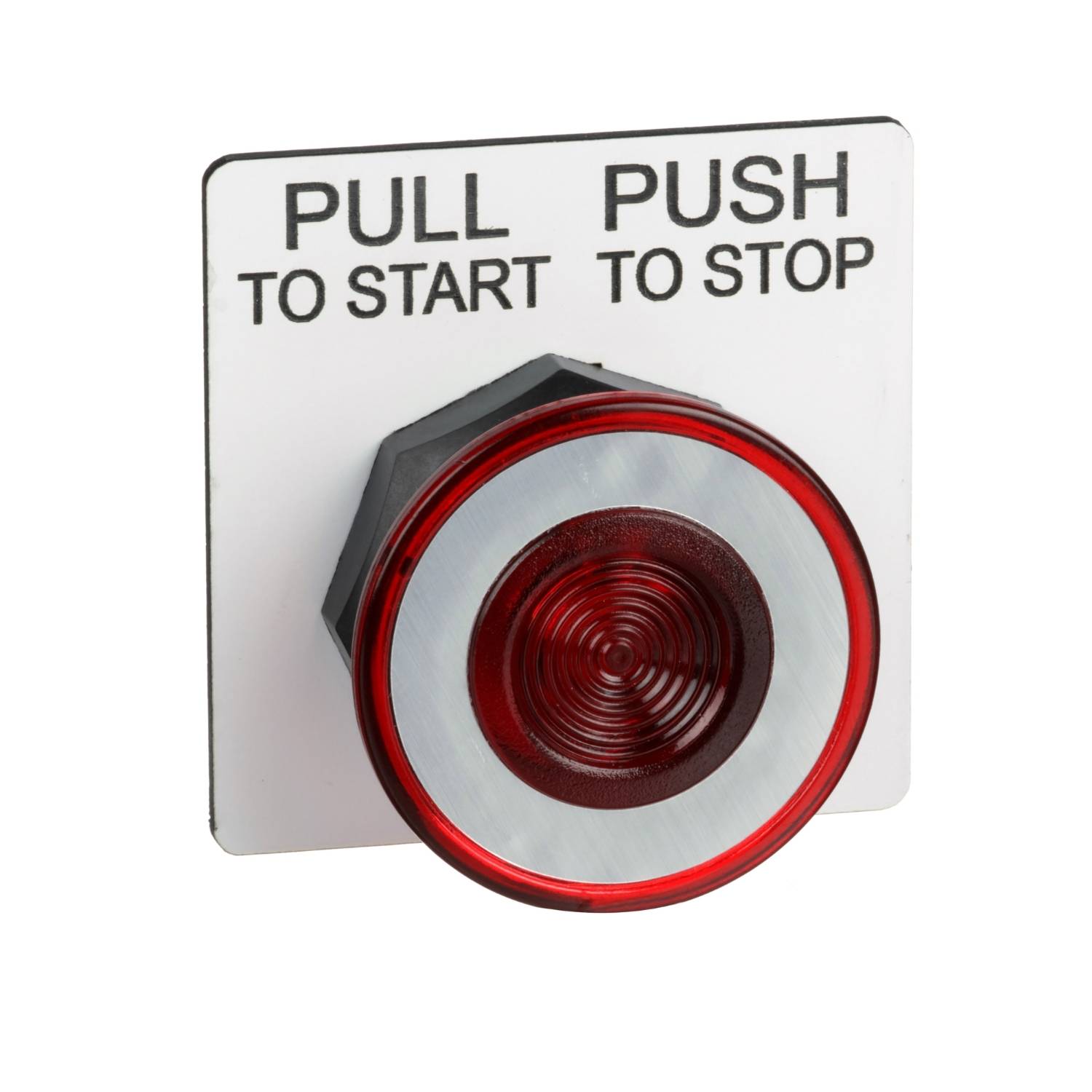

SKR9R MAINTAINED PUSH BUTTON RED
Trade Price
POA
Per
1
Unit
EA
Pack Quantity
1
Information
This red mushroom head for push-button is a separate component of the range of control and signaling units, Harmony 9001SK diameter 30mm. It has a double insulated bezel. It is supplied with a red mushroom diameter 41 mm, unmarked Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It features push pull operation. Its protection index is IP66. It weighs 95g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Technical Specifications
Range of product
Harmony 9001SK
Product or component type
Head for push-button
Device short name
9001SK
bezel material
Plastic
Mounting diameter
30 mm
CAD overall width
46 mm
CAD overall height
45 mm
CAD overall depth
69 mm
Net weight
0.095 kg
Operating position
Any position
Shape of signaling unit head
Round
Type of operator
Push-pull
Operator profile
Mushroom Ø 41 mm
Mechanical durability
5000000 cycles
Operator additional information
Screw-on plastic
Cap/operator or lens colour
Red
Operator position information
2 positions
Contacts type and composition
Without contact block
Size
30 mm
Protective treatment
TC
Ambient air temperature for storage
-40…70 °C
Ambient air temperature for operation
-25…70 °C
Electrical shock protection class
Class II conforming to IEC 61140
IP degree of protection
IP66 conforming to IEC 60529
NEMA degree of protection
NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 3 NEMA 3R NEMA 4 NEMA 4X
Standards
CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C 4520 JIS C 852 UL 508
product certifications
UL 508 NEMA CSA LR25490 class 3211 03 UL listed file E78403 CCN NKCR
Vibration resistance
7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn conforming to IEC 60068-2-27
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.842 cm
Package 1 Width
5.08 cm
Package 1 Length
9.398 cm
Package 1 Weight
58.967 g
Warranty
18 months
