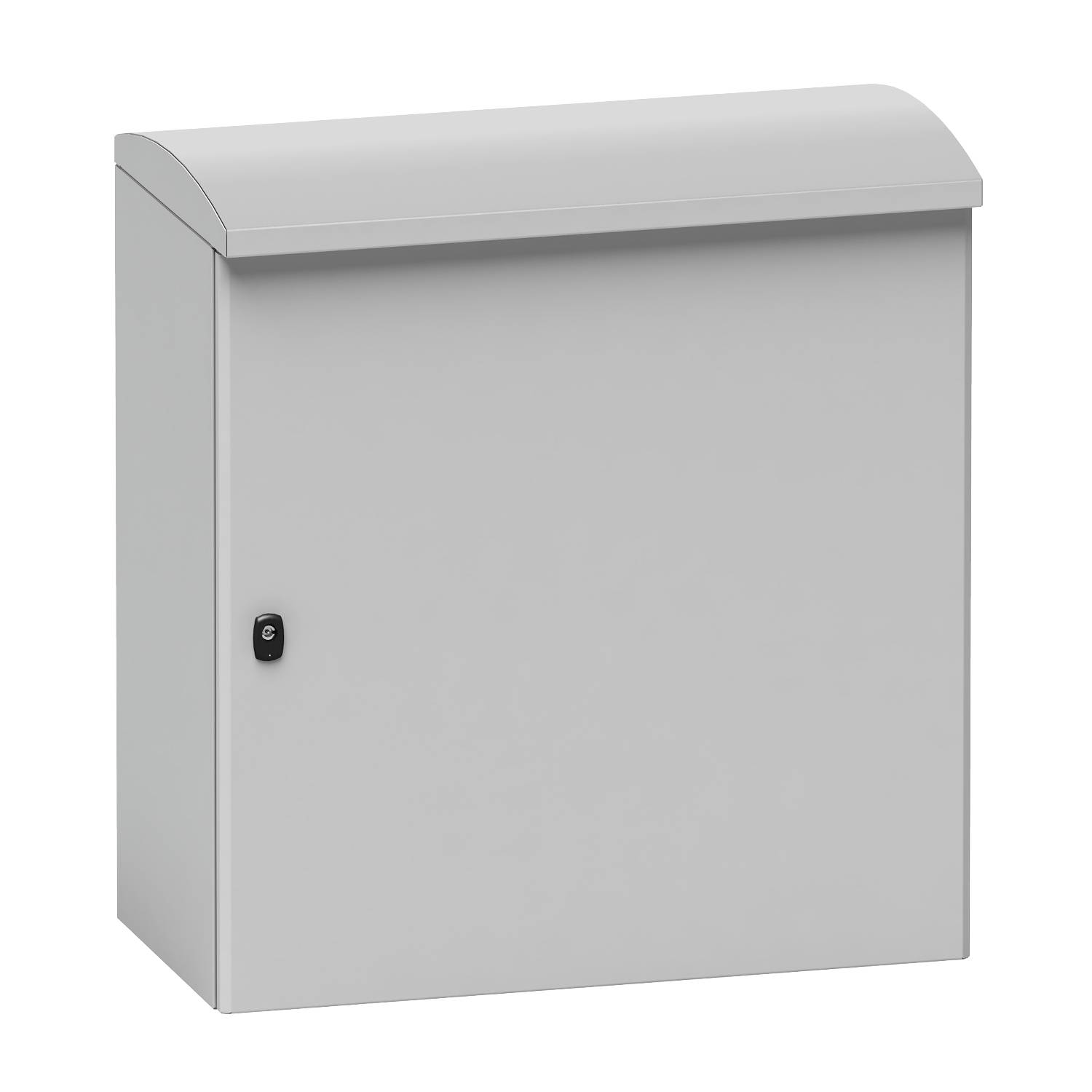

NSYS3HD5420

Range

Spacial

Product name

Spacial S3HD

Installation type

Multi-purpose

Specific application

Outdoor heavy duty

Category

Compact enclosure

Enclosure nominal height with canopy

548 mm

Canopy nominal height

48 mm

Enclosure nominal width

400 mm

Enclosure nominal depth with canopy

230 mm

Enclosure nominal depth

200 mm

Door type

Plain

Mounting plate description

Without mounting plate

Cable gland plate type

Plain aluminium

Installation accessory type

Wall-mounting

Device composition

1 body 1 door 1 lock 1 door retainer 1 canopy 1 cable gland plate 1 document pocket

Certification

UL conforming to UL 508 A 2007 Bureau Veritas conforming to IEC 61969-3 2011 Bureau Veritas conforming to IEC 61439-5 2010 DEKRA conforming to IEC 62208 2011 Bureau Veritas conforming to ISO 12944 2007

body type

Single piece body Gutter-shaped front rail double sheet thickness

Number of doors

Front face: 1 door(s)

Door opening side

Reversible (120 °)

Lock type

1 point lock, 3 mm double-bar

accessibility for operation

Front

Removable parts

Door by hinges

Maximum lifting load

200 kg

Material

Steel with anti-corrosive coating

Surface finish

Enclosure: polyester powder

Colour

Grey (RAL 7035)

Net weight

10.278 kg

standards

IEC 61969-3 IEC 61439-5 IEC 62208 UL 508 A

IP degree of protection

IP66 enclosure protection conforming to IEC 60529 class 2

IK degree of protection

IK10 conforming to IEC 62262

Climatic withstand

C4H conforming to ISO 12944 720 h salt mist

Ambient air temperature for operation

-45…80 °C conforming to IEC 61969-3 class 1

Corrosion withstand

90…100 % 40 °C conforming to ISO 12944 C4H

Environmental withstand

Solar radiation: class 1 up to 1120 W/m² conforming to IEC 61969-3:2011 Surrounding air withstand: class 1 up to 180 km/h conforming to IEC 61969-3:2011 Ultraviolet degradation test: class 1 conforming to ISO 4892-2:2013 Formation of ice and frost: class 1 conforming to IEC 61969-3:2011 Fauna and flora withstand: class 1 conforming to IEC 61969-3:2011 : class 1 conforming to IEC 61969-3:2011

Thermal management options

Fan: 1500 W for a maximum noise level of 60 dB

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

25.0 cm

Package 1 Width

42.0 cm

Package 1 Length

59.0 cm

Package 1 Weight

10.278 kg

Unit Type of Package 2

PAM

Number of Units in Package 2

24

Package 2 Height

182.0 cm

Package 2 Width

100.0 cm

Package 2 Length

120.0 cm

Package 2 Weight

260.0 kg

Warranty

18 months
